XHAQSN-608 is a low-cost air quality monitoring solution designed for accurate, high time resolution measurement of criteria pollutants. The XHAQSN-608 utilizes state of the art sensor technology enhanced with a machine learning calibration system and a convenient cloud based data acquisition and visualization system. The monitor has been extensively field tested, is easy to install and can provide the user with real time data within minutes of setting up.

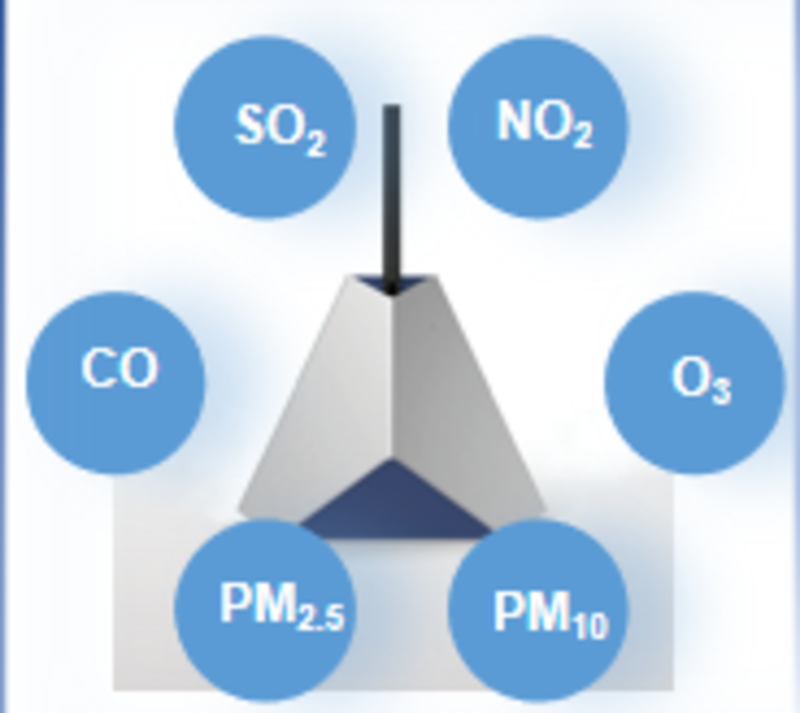

Pollutant	Detection Principle		Units	Range	Detection Limit	Resolution
SO2	Electrochemical Sensor		ppb	0 ~ 500	5	0.01
NO2			ppb	0 ~ 500	5	0.01
CO			ppm	0 ~ 50	0.1	0.01
O3			ppb	0 ~ 500	5	0.01
PM10	Light Scattering		µg/m3	0 ~ 1000	5	1
PM2.5			µg/m3	0 ~ 1000	5	1
Power Supply		DC 12V, Solar
Power Consumption		Less than 3 watts
Operating Temperature		-20 to 55 ℃
Atmospheric Pressure		(80 – 106) kPa
Relative Humidity		0～95% (non-condensing)
Communication		GPRS(2G/3G/4G)
Size		220 x 220 x 300mm
Weight		2.6 kg (5.75 lbs)
Software		Cloud: For instrument and data management. Runs on secure servers accessed via web browser
Mounting		Pole Mounting, Bracket Included

APPLICATION ● Real Time Alternative to Samplers ● Smart Cities ● Pollution Source Identification and Locating ● Traffic Pollution Monitoring ● Industrial Fence Line Monitoring ● Emergency Monitoring ● Air Quality Model Validation ● Community Based Monitoring ● Pollution Migration Mapping
